  6. Scotch® Vinyl Electrical Tape, 66R, black, 10 mil (0.25 mm), 2 in x 108 ft (50 mm x 33 m)

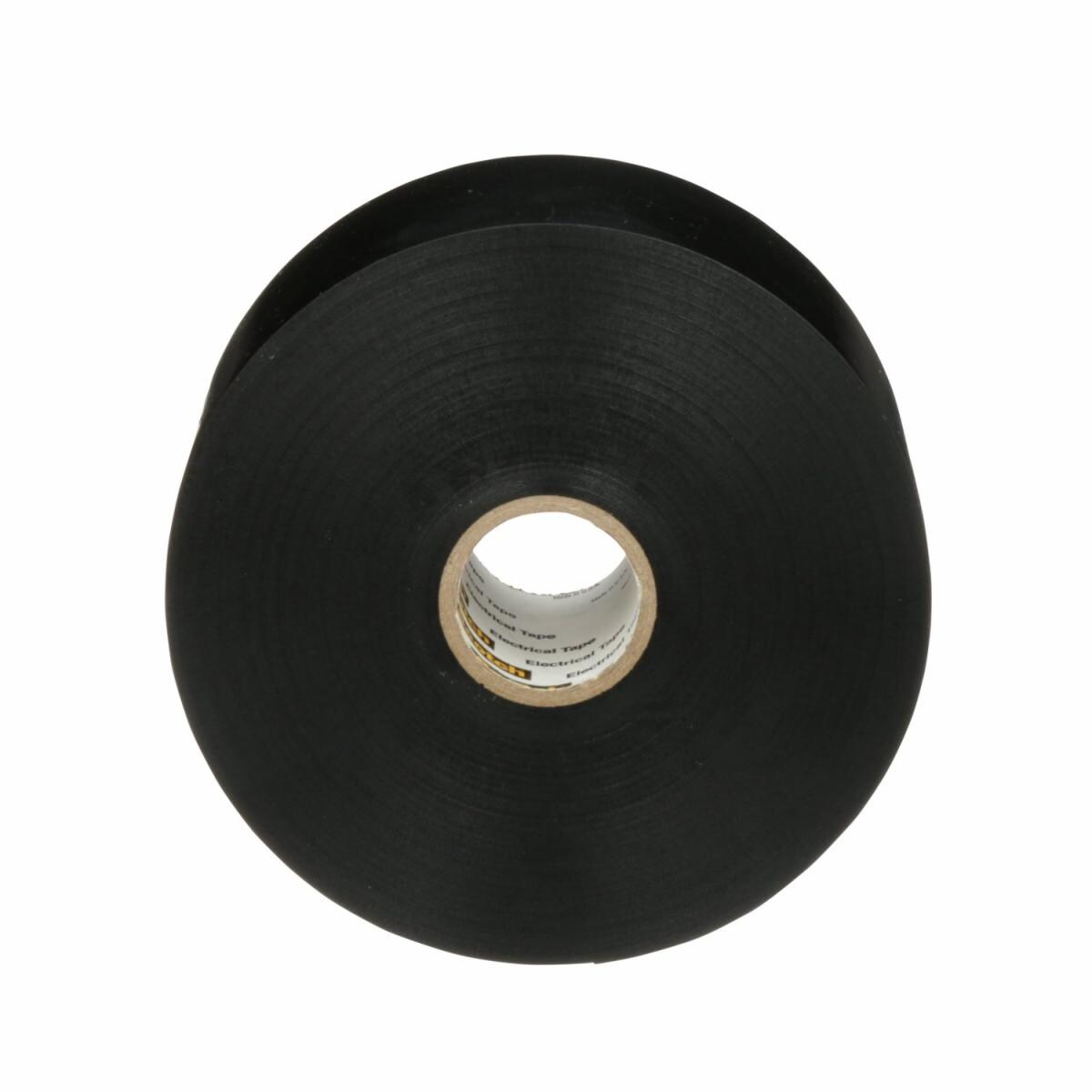

Scotch® Vinyl Electrical Tape, 66R, black, 10 mil (0.25 mm), 2 in x 108 ft (50 mm x 33 m)

  • 3M ID 7100037433
  • UPC 00689330122110

Flame retardant

Compatible with solid dielectric cable insulation

Excellent resistance to abrasion, moisture, alkalis, acid, and varying weather conditions

View more details

Specifications

Details

Highlights
  • Flame retardant
  • Compatible with solid dielectric cable insulation
  • Excellent resistance to abrasion, moisture, alkalis, acid, and varying weather conditions
  • Usable indoors and outdoors

Scotch® Vinyl Electrical Tape 66R is a conformable vinyl tape made with a polyvinyl chloride backing and pressure sensitive, rubber-based adhesive designed to perform in temperatures up to 105ºC (220ºF). It provides moisture-tight electrical and mechanical protection, and memory action to hold tight and provide pressure to underlying substrate without slipping or flagging.

Scotch® Vinyl Electrical Tape 66R provides a protective jacket for high voltage cable splices. It is highly resistant to abrasion, moisture, alkalis, acid and varying weather conditions. This tape is compatible with solid, dielectric cable insulation. It is suitable for jacketing low and high voltage bus bar. It withstands a temperature range of 32°F to 221°F (0°C to 105°C). UL Listed and RoHS 2011/65/EU Compliant.

Suggested applications
  • Primary electrical insulation for 600-volt bus bar applications
  • Primary electrical insulation for cable and wire splices rated up to 600 volts
  • Protective jacketing for high voltage cable splices and repairs
