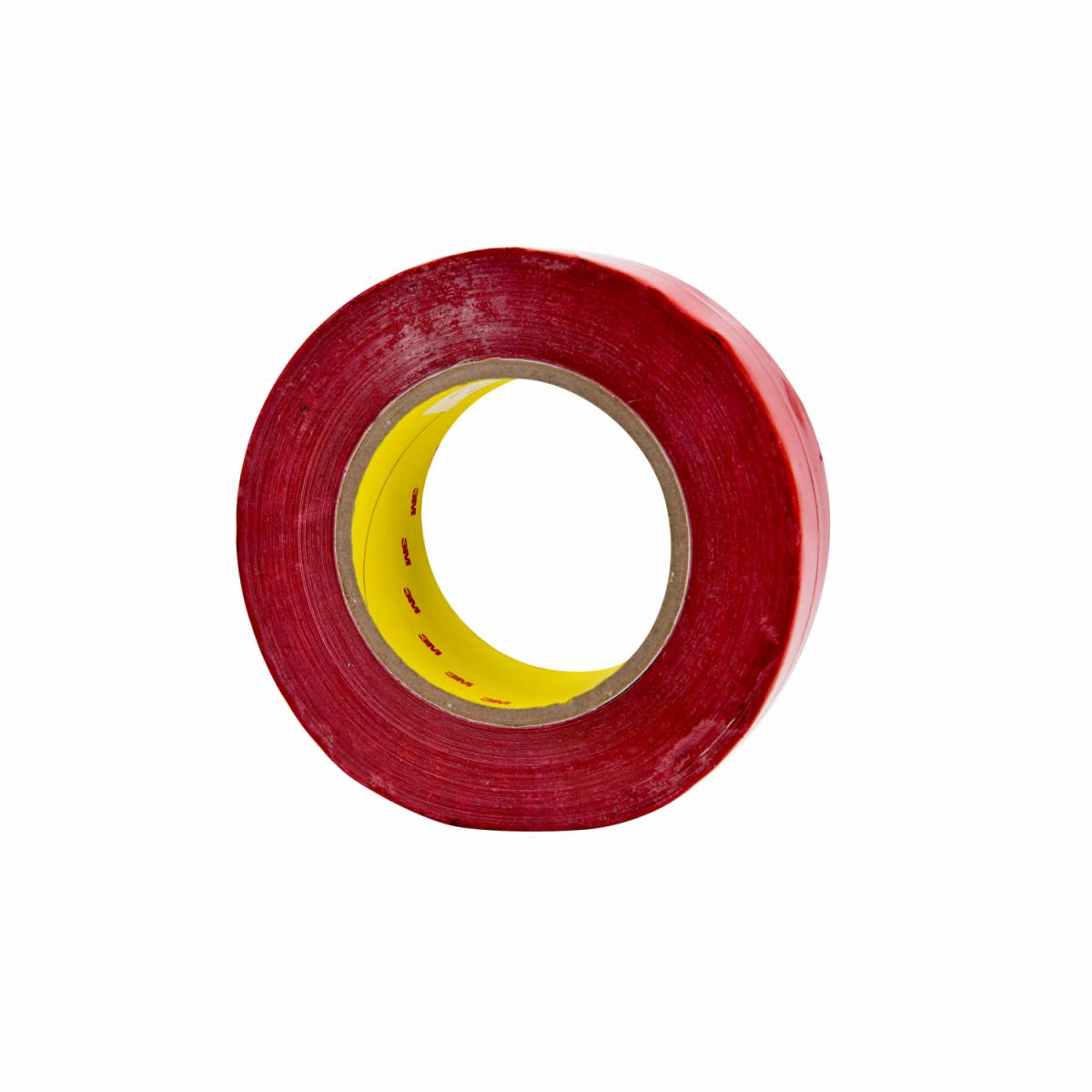

3M™ Fire and Water Barrier Tape

products
  • Provides up to 4-hour fire protection in construction joints per ASTM E1966 (UL 2079) and CAN/ULC-S115; up to 3-hour fire protection in perimeter joints per ASTM E2307 and CAN/ULC-S115 at the maximum extended joint width.
  • Can be installed in temperatures as low as -18°C (0°F) and as high as 49°C (120°F)
  • Broad temperature range when applying
  • Meets UL Water Leakage Test, W-Rating— Class One requirements for systems tested and listed in accordance with ANSI/UL 1479, and and CAN/ULC-S115
 More...
View all details
Overall Length (Imperial)
Overall_Length_Imperial
Overall Width (Imperial)
Overall_Width_Imperial
Overall Width (Metric)
Overall_Width_Metric
products found
Filter options:
 Overall Length (Imperial), Overall Width (Imperial) and Overall Width (Metric)
Product Results
  • Overall Width (Imperial)
    Overall Length (Imperial)
    Overall Width (Metric)
    Overall Length (Metric)
  • 3M™ Fire and Water Barrier Tape, 2 in x 75 ft (5 cm x 22.8 m)
    Overall Width (Imperial)
    2 in
    Overall Length (Imperial)
    76 ft
    Overall Width (Metric)
    5.08 cm
    Overall Length (Metric)
    22.86 m
  • 3M™ Fire and Water Barrier Tape, 8 in x 75 ft (20 cm x 22.8 m)
    Overall Width (Imperial)
    8 in
    Overall Length (Imperial)
    78 ft
    Overall Width (Metric)
    30.48 cm
    Overall Length (Metric)
    22.86 m
  • 3M™ Fire and Water Barrier Tape, 12 in x 75 ft (30 cm x 22.8 m)
    Overall Width (Imperial)
    12 in
    Overall Length (Imperial)
    80 ft
    Overall Width (Metric)
    30.48 cm
    Overall Length (Metric)
    22.86 m
  • 3M™ Fire and Water Barrier Tape, 4 in x 75 ft (10 cm x 22.8 m)
    Overall Width (Imperial)
    4 in
    Overall Length (Imperial)
    81 ft
    Overall Width (Metric)
    10.16 cm
    Overall Length (Metric)
    22.86 m
Close
Specifications
Applications
Commercial Construction
Brand
3M™
Product Form
Roll
Details
  • Provides up to 4-hour fire protection in construction joints per ASTM E1966 (UL 2079) and CAN/ULC-S115; up to 3-hour fire protection in perimeter joints per ASTM E2307 and CAN/ULC-S115 at the maximum extended joint width.
  • Can be installed in temperatures as low as -18°C (0°F) and as high as 49°C (120°F)
  • Broad temperature range when applying
  • Meets UL Water Leakage Test, W-Rating— Class One requirements for systems tested and listed in accordance with ANSI/UL 1479, and and CAN/ULC-S115
  • Acts as an immediate barrier to water leakage
  • Up to 2-hour fire protection in through-penetration applications per ASTM E814 (UL 1479) and CAN/ULC-S115

3M™ Fire and Water Barrier Tape is an elastomeric fire, water, smoke and sound tape. When installed properly it can act as a barrier to water leakage and airborne sound transmission, while helping to control the transmission of fire, heat and smoke.

Suggested Applications

  • Fire protection in construction and perimeter joints, and through-penetration applications
  • Meets UL Water Leakage Test, W Rating — Class 1 requirement; tested and immediately passed ASTM D 6904 Rain Resistance Test
