- Helps to resist splitting and solvents
- Can handle voltage ranges from 600 V to 35 kV
- High resistance to splitting
- Unaffected by normal cleaning fluids and
Specifications
|
|
|
|---|---|
|
Agency Approvals
|
IEEE
|
|
Brand
|
3M™
|
|
Colour Family
|
Multi-colour
|
|
Expanded Wall Thickness
|
0.049 in
|
|
Flame Retardant
|
Yes
|
|
Inner Diameter After Shrink (Imperial)
|
1.024 in
|
|
Inner Diameter After Shrink (Metric)
|
26 mm
|
|
Inner Diameter Before Shrink (Imperial)
|
2.362 in
|
|
Inner Diameter Before Shrink (Metric)
|
60 mm
|
|
Manufacturing Origin
|
USA
|
|
Material
|
Polyolefin
|
|
Maximum Operating Temperature (Celsius)
|
110 °C
|
|
Maximum Operating Temperature (Fahrenheit)
|
230 °F
|
|
Maximum Recovered Tubing I. D.
|
1.01 in
|
|
Minimum Expanded Tubing I. D.
|
2.38 in
|
|
Model
|
Heat-shrink
|
|
Operating Temperature (Celsius)
|
-55 °C to 110 °C
|
|
Operating Temperature Range (Celsius)
|
-55 °C to 110 °C
|
|
Operating Temperature Range (Fahrenheit)
|
-67 °F to 230 °F
|
|
Outside Diameter (Bar Circumference)
|
3.28 - 5.57 inch
|
|
Overall Length (Imperial)
|
50 ft
|
|
Overall Length (Metric)
|
15.2 m
|
|
Product Colour
|
Orange, Red
|
|
Product Key
|
BB10 NEW BUS BAR TUBING 3000 FPE
|
|
Product Technology
|
Heat Shrink
|
|
Product Type
|
Bus Bar Tubing
|
|
Recovered Wall Thickness
|
0.113 in
|
|
Rectangular Size
|
(1-1/2 x 1/4) to (2-1/2 x 1/2) Inch (5 kV, 8 kV, 15 kV, 25 kV)
|
|
Round Size (Diameter)
|
See Sizing Chart on Data Sheet
|
|
Shape
|
See Sizing Chart on Data Sheet
|
|
Shrink Ratio
|
3:1
|
|
Solution
|
constructionbus
|
|
Splice Type
|
Heat Shrink
|
|
Square Size
|
(1 x 1) to (1-1/2 x 1-1/2) Inch (for 5 kV, 8 kV, 15 kV), 3.28 - 5.57 inch O.D. (for 25kV)
|
|
Units per Case
|
1
|
|
Voltage
|
15 kV, 25 kV, 5 kV, 8 kV
|
Details
- Helps to resist splitting and solvents
- Can handle voltage ranges from 600 V to 35 kV
- High resistance to splitting
- Unaffected by normal cleaning fluids and
- Resistant to physical damage
- Good thermal endurance of up to 110°C (230°F)

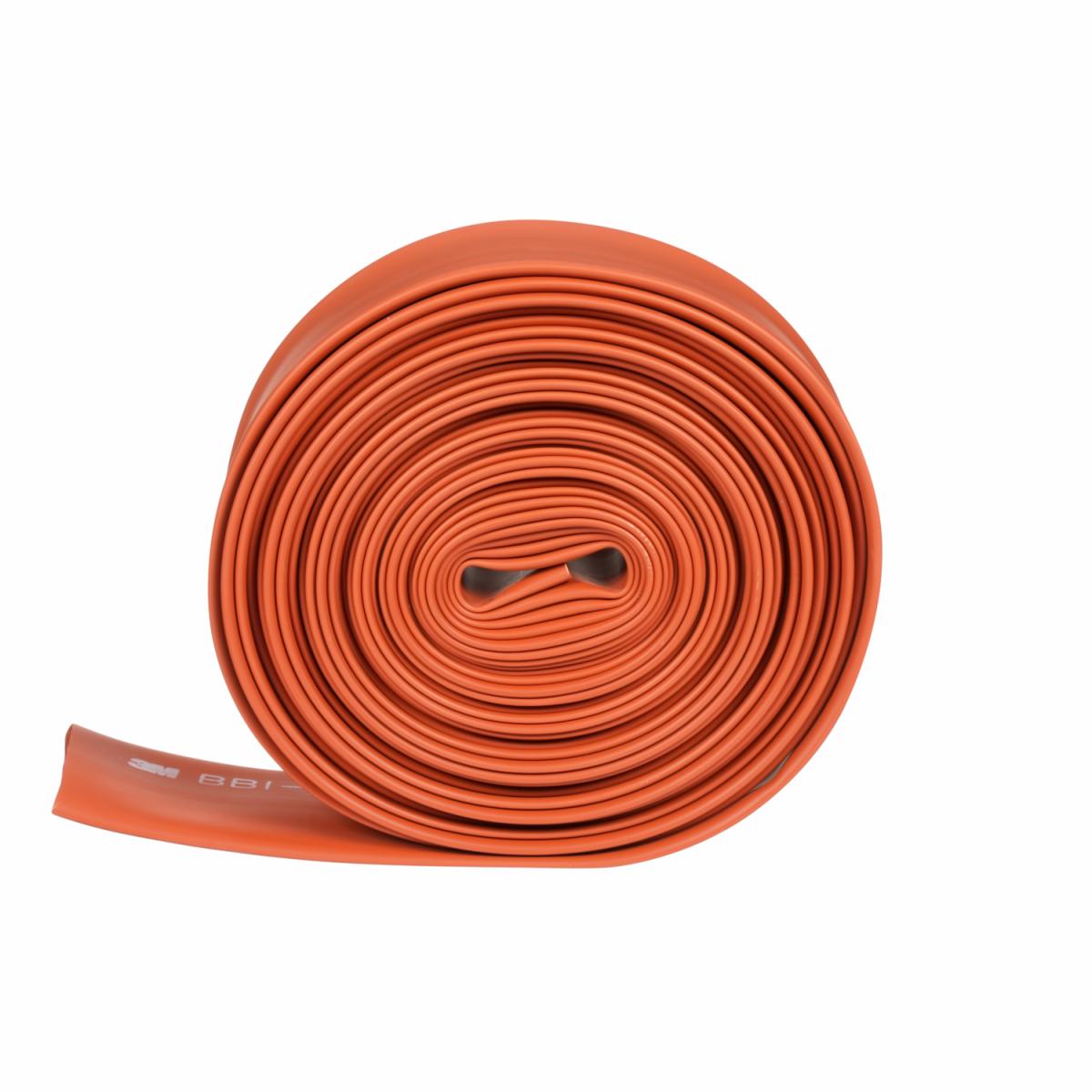

3M™ Bus Bar Heat Shrink Tubing BBI-A Series is designed for insulating rectangular, square, and round bus bar rated from 5 kV through 35 kV. It will also cover and insulate inline bolted connections of rectangular bus bars. It has high resistance to splitting, good solvent resistance, and excellent tracking resistance properties.
Suggested Applications
- Covers and insulates rectangular, square or round bus bars
Documents
Safety Data Sheets
