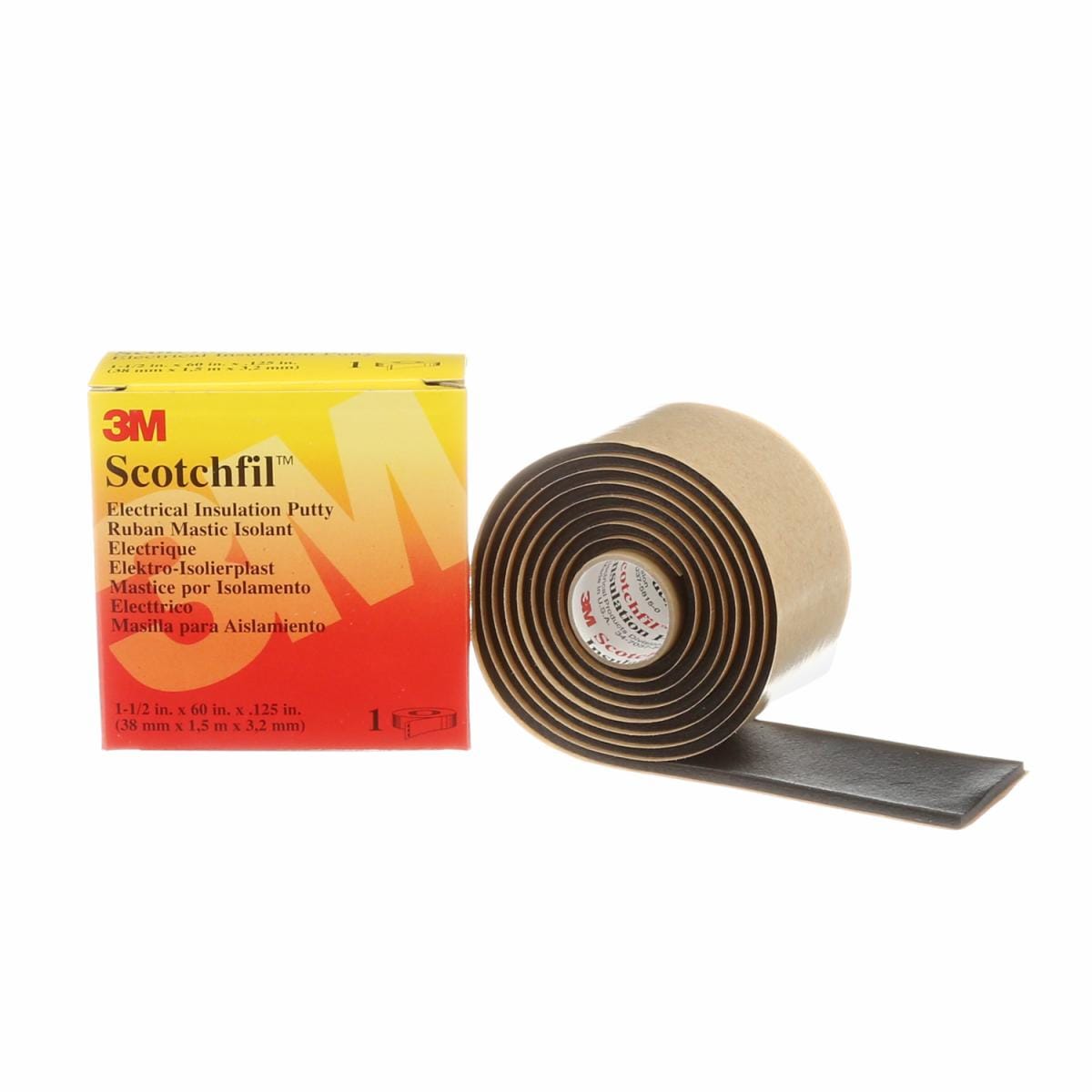

3M™ Scotchfil™ Electrical Insulation Putty, black, 1 1/2 in x 60 in (38.1 mm x 152.4 cm)
- Non-corrosive mastic adhesive in a flexible tape form
- UL Listed and RoHS 2011/65/EU Compliant
- Suitable for temperatures from 32°F to 176°F (0°C to 80°C)
|
|
|
|---|---|
|
Adhesive Material
|
Mastic
|
|
Applications
|
Sealing
|
|
Backing Material
|
Electrical Insulation Putty
|
|
Backing Thickness (metric)
|
3.175 mm
|
|
Brand
|
Scotchfil™
|
|
Case Quantity
|
100 Rolls
|
|
Colour Family
|
Black
|
|
Dielectric Strength (V/mil)
|
22000
|
|
Elongation
|
1000 %
|
|
Elongation at Break
|
10
|
|
Family
|
3M™ Scotchfil™ Black, Electrical Insulation Putty
|
|
Insulated
|
Yes
|
|
Manufacturing Origin
|
USA
|
|
Material
|
Electrical Grade Putty
|
|
Maximum Temperature Rating (Celsius)
|
80 °C
|
|
Maximum Temperature Rating (Fahrenheit)
|
176 °F
|
|
Minimum Order Quantity
|
10 Rolls
|
|
Minimum Temperature Rating (Celsius)
|
0 °C
|
|
Minimum Temperature Rating (Fahrenheit)
|
32 °F
|
|
National Stock Number
|
5970000453699
|
|
Operating Temperature (Celsius)
|
0 to 80 Degree Celsius
|
|
Operating Temperature (Fahrenheit)
|
32 °F to 176 °F
|
|
Overall Length (Imperial)
|
60 in
|
|
Overall Length (Metric)
|
1.524 m
|
|
Overall Width (Imperial)
|
1.5 in
|
|
Overall Width (Metric)
|
38.1 mm
|
|
Product Colour
|
Black
|
|
Product Markets
|
Electrical Construction, Electrical Equipment Manufacturing, Electrical MRO, Power Distribution
|
|
Product Type
|
Mastic tape
|
|
Self-Extinguishing
|
No
|
|
Self-sticking
|
Yes
|
|
Shelf Life
|
5 yr
|
|
Size (Imperial)
|
1.5 in x 60 in
|
|
Size (Metric)
|
38.1 mm x 1.524 m
|
|
Solution for
|
Wireless Network: Infrastructure Accessories
|
|
Suitable for High Voltage
|
No
|
|
Tape Grade
|
Premium
|
|
Tape Length (metric)
|
1.5 m
|
|
Tape Type
|
Sealing and Insulating Mastic
|
|
Tape Width (metric)
|
38 mm
|
|
Total Thickness
|
3.175 mm
|
|
UV Resistant
|
Yes
|
|
Voltage Application
|
Low Voltage
|
|
Vulcanizing
|
No
|
- Non-corrosive mastic adhesive in a flexible tape form
- UL Listed and RoHS 2011/65/EU Compliant
- Suitable for temperatures from 32°F to 176°F (0°C to 80°C)
The 3M™ Scotchfil™ Electrical Insulation Putty comes in a tape form that is used to insulate irregular surfaces like fittings and valves. This self-fusing, electrical-grade tape can be stretched or wrapped and helps to insulate connections up to 600V. It withstands a wide temperature range of 32°F to 176°F (0°C to 80°C).
3M™ Scotchfil™ Electrical Insulation Putty is a 125 mil (3.18 mm) thick, non-corrosive, mastic adhesive that offers optimized adherence. This tape shaped putty has outstanding aging properties and is ideal for creating a resin dam at resin pressure joints. It helps to seal multi-conductor cable connections, as well as wire exits at high voltage joints. This tape is RoHS 2011/65/EU Compliant.
Suggested Applications
- To insulate low-voltage (600 volts and less) connections
- To build up cable splices and fill out major irregularities and voids in low-voltage splices (2300 volts and less) in order to obtain a uniform base for further taping
