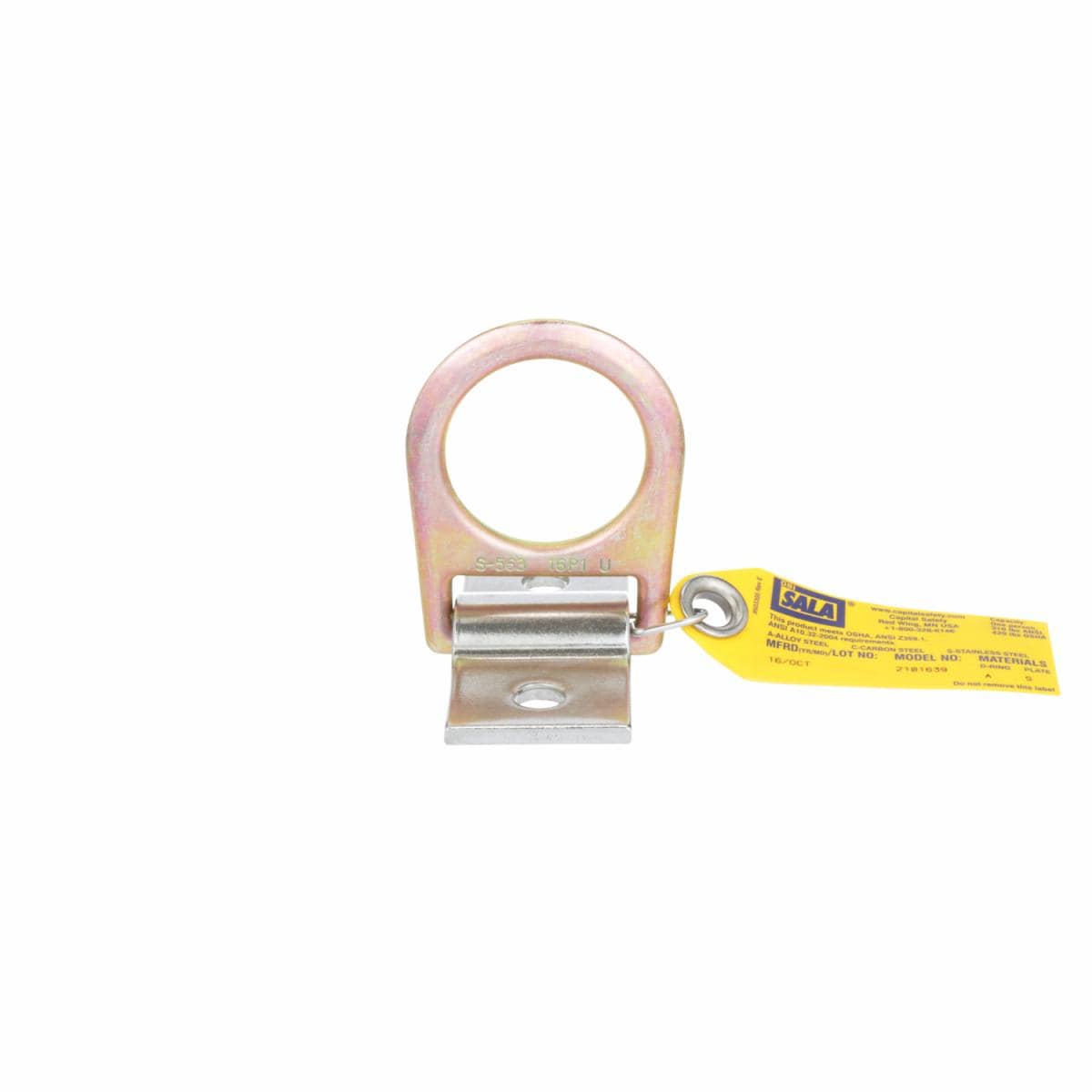

  6. 3M™ DBI-SALA® D-ring Anchorage Plate, 2101639, with stainless steel plate, silver, yellow zinc, 0.25 in x 2 in x 4.5 in (6 mm x 51 mm x 114 mm)

3M™ DBI-SALA® D-ring Anchorage Plate, 2101639, with stainless steel plate, silver, yellow zinc, 0.25 in x 2 in x 4.5 in (6 mm x 51 mm x 114 mm)

3M ID 70007440731
  • Bolt or weld to structure for fall arrest anchor point
  • Compact 1/4 in x 2 in x 4-1/2 in (6 mm x 51 mm x 114 mm) 304 stainless steel plate
  • Pre-drilled 1/2 in (12.7 mm) holes
  • Zinc plated steel D-ring for compatible tie-off point
 More...
View all details
Specifications
Anchor Install Type
Permanent
Brand
DBI-SALA®
Case Quantity
1
Connected Safety ID Equipped
No
Material
Zinc Plated Steel
Product Colour
Silver, Yellow Zinc
Product Type
D-ring Anchorage Plate
Recommended Industry
Construction, General Industrial, Mining, Oil & Gas, Transportation, Utilities, Wind Energy
Weight (Imperial)
1.2 lb
Weight Capacity (Imperial)
420 lb
Weight Capacity (Metric)
190 kg
Details

3M™ DBI-SALA® D-ring Anchorage Plate with zinc plated steel D-ring and 304 stainless steel plate

Our anchorage connectors are built from top quality materials providing high strength and durability to stand up to the toughest environments. Anchorage connectors are the unsung heroes of most fall protection systems, often overlooked but critical components because they securely attach your system to the anchorage. Your choice of anchor depends on the type of work being done. Anchorages are sold by what they connect to (general/all purpose, steel, concrete, roof or specialty), whether they are fixed or mobile, and whether they are permanent or portable. They all must provide a secure point of attachment for a complete personal fall arrest system, and must be capable of supporting a load of 5,000 lbs (22kN) or of meeting OSHA’s criteria of a 2-to-1 safety factor.

  • Bolt or weld to structure for fall arrest anchor point
  • Compact 1/4 in x 2 in x 4-1/2 in (6 mm x 51 mm x 114 mm) 304 stainless steel plate
  • Pre-drilled 1/2 in (12.7 mm) holes
  • Zinc plated steel D-ring for compatible tie-off point
  • High strength steel construction
  • Extremely rugged and corrosion resistant
